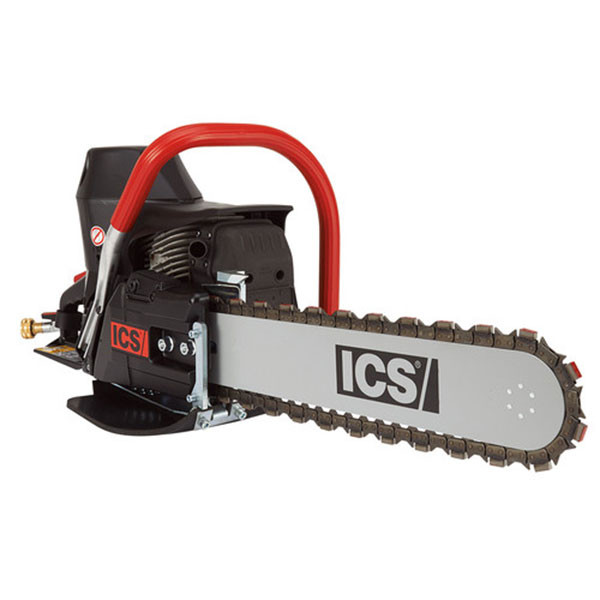

ICS 680ES-10 PG Gas Power Cutter Pkg
Item #: 580423
$1,869.75
Fits: 680GC
Allow 1-2 week shipping time.
680ES-10 PG Gas Saw Package includes:
- 680ES Powerhead (Item# 576155)
- 10 inch/25 cm guidebar (Item# 635708)
- 10 inch/25 cm (48 Drive Links) PowerGrit chain (Item# 580424)
*Can be converted to run the FORCE3 line of diamond chains by switching the guidebar and drive sprocket.
PowerGrit XL Diamond Chain (Item#608234), 10 inch/25 cm (48 drive links) FOR 680ES-PG Only
Built to meet the operation and flexibility demands of the general construction user, the 680ES stands alone in terms of reliability and value.
Easy to start with a new multifunction lever to control choke, run, and stop functions.
The powerhead houses specially designed carburetion and ignition systems that work together for easy starting, cooler operation, and dependable performance at just about any elevation.
- Sold with PowerGrit chain, cuts ductile iron, cast iron, pvc, hdpe and ac pipe.
- Polyester air filter designed specifically for wet cutting
- Operates FORCE3® bar and chain consumables up to 14” (35cm)
- Multifunction lever controls choke, throttle advance, run and stop modes
- Extended drive sprocket adapter offers easy chain assembly
- Deep cutting solution for obstructed or small openings
- Cut squares as small as 4” x 4” (10 cm x 10 cm)
- Easy-to-start in all weather
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Gas Concrete Saw | |||
|---|---|---|---|
| Engine Type | 2-stroke, single cylinder, air cooled | ||
| Displacement | 4.7 cu in (76.5 cc) | ||
| Engine Speed Max | 11,500 +/- 500 rpm (max) | ||
| Engine Speed Idle | 2,800 - 3,200 rpm | ||
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil | ||
| Fuel Capacity | 0.23 gal (0.88 L) | ||
| Chainsaw | |||
|---|---|---|---|
| Power Type | Gas | ||
| Use Application | HDPE Ductile Iron Cast Iron PVC AC Pipe |
||
| Weight, Saw Only | 21 lbs (9.6 kg) | ||
| Cutting Depth | up to 10 in (25 cm) | ||
| Bar Length | 10 in (25 cm) | ||
| Noise Level (Power) | 117 dB(A), (Kwa=3.0 dB(A)) | ||
| Chain Length | 10 in (25 cm) | ||
| Noise Level (Pressure) | 101 dB(A), (K=2.0 dB(A)) | ||
| Horsepower | 5 hp (3.7 kW) | ||
| Front Handle Vibration, ahv eq Concrete Cutting | 7.2 m/s2 (K=1.0 m/s2) | ||
| Rear Handle Vibration, ahv eq Concrete Cutting | 8.5 m/s2 (K=1.0 m/s2) | ||
| Water Supply (Min) | 20 psi (1.4 bar) | ||
| Water Flow Req (Min) | 2 gpm (8 lpm) | ||
| General | |||
|---|---|---|---|
| Unit of Measure | Each | ||
