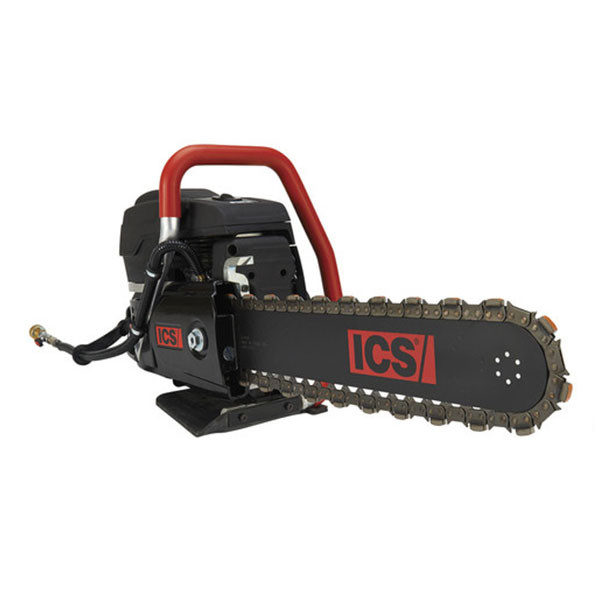

ICS 695XL-12 F4 Gas Power Cutter Pkg
Item #: 576151
$3,069.75
With 12 in/30 cm FORCE4 Guidebar & Chain.
Allow 1-2 week shipping time.
695XL-12 F4 Gas Saw Package Includes:
- 695XL F4 Powerhead (Item# 575826)
- 12 inch/30 cm FORCE4 guidebar (Item# 635706)
- 12 inch/30 cm FORCE4 chain (Item# 648023 (531743))
Also compatible with our PowerGrit (Item# 547641) and PowerGrit XL (Item# 608233) pipe cutting diamond chains.
The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction, utility contractors, and concrete professionals.
- Use on concrete, stone, masonry, brick, block, ductile iron, cast iron, PVC, HDPE and more
- Most versatile gas power cutter
- Piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- Easy-to-tune carburetor
- Will also operate PowerGrit and PowerGritXL diamond chain
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Gas Concrete Saw | |||
|---|---|---|---|
| Engine Type | 2-stroke, single cylinder, air cooled | ||
| Displacement | 5.7 cu in (94 cc) | ||
| Engine Speed Max | 9,300 +/- 150 rpm (max) | ||
| Engine Speed Idle | 2,700 +/- 100 rpm | ||
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil | ||
| Fuel Capacity | 0.26 gal (1 L) | ||
| Chainsaw | |||
|---|---|---|---|
| Power Type | Gas | ||
| Use Application | Asphalt Brick Block Concrete Masonry Stone |
||
| Weight, Saw Only | 21 lbs (9.6 kg) | ||
| Cutting Depth | up to 12 in (30 cm) | ||
| Bar Length | 12 in (30 cm) | ||
| Noise Level (Power) | 115 dB(A), (Kwa = 1.0 dB(A)) | ||
| Chain Length | 12 in (30 cm) | ||
| Noise Level (Pressure) | 104 dB(A), (K=1.0 dB(A)) | ||
| Horsepower | 6.4 hp (4.8 kW) | ||
| Front Handle Vibration, ahv eq Concrete Cutting | 3.6 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Concrete Cutting | 3.1 m/s2 (K=0.2 m/s2) | ||
| Front Handle Vibration, ahv eq Pipe Cutting | 5.62 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Pipe Cutting | 5.28 m/s2 (K=0.2 m/s2) | ||
| Water Supply (Min) | 20 psi (1.4 bar) | ||
| Water Flow Req (Min) | 2 gpm (8 lpm) | ||
| General | |||
|---|---|---|---|
| Unit of Measure | Each | ||
