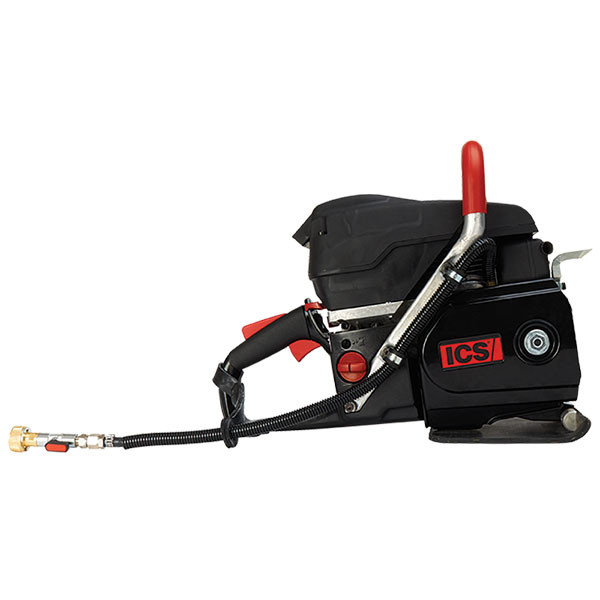

ICS 695XL F4 Powerhead
Item #: 575826
$2,426.66
Available to ship. Freight not included.
695XL Gas Saw. Powerhead only. Fits FORCE4 guidebars and diamond chains, which are available separately.
The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction and concrete professionals.
- Powerhead only
- Polyester air filter designed specifically for wet cutting
- Operates FORCE3® bar and chain consumables up to 14” (35cm)
- Multifunction lever controls choke, throttle advance, run and stop modes
- Extended drive sprocket adapter offers easy chain assembly
- Deep cutting solution for obstructed or small openings
- Cut squares as small as 4” x 4” (10 cm x 10 cm)
- Easy-to-start in all weather
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Gas Concrete Saw | |||
|---|---|---|---|
| Engine Type | 2-stroke, single cylinder, air cooled | ||
| Displacement | 5.7 cu in (94 cc) | ||
| Engine Speed Max | 9,300 +/- 150 rpm (max) | ||
| Engine Speed Idle | 2,700 +/- 100 rpm | ||
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil | ||
| Fuel Capacity | 0.26 gal (1 L) | ||
| Chainsaw | |||
|---|---|---|---|
| Power Type | Gas | ||
| Use Application | HDPE Asphalt Ductile Iron Brick Cast Iron Block Concrete Masonry PVC Stone AC Pipe |
||
| Weight, Saw Only | 21 lbs (9.6 kg) | ||
| Cutting Depth | up to 20 in (50 cm) | ||
| Bar Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
||
| Noise Level (Power) | 115 dB(A), (Kwa = 1.0 dB(A)) | ||
| Chain Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
||
| Noise Level (Pressure) | 104 dB(A), (K=1.0 dB(A)) | ||
| Horsepower | 6.4 hp (4.8 kW) | ||
| Front Handle Vibration, ahv eq Concrete Cutting | 3.6 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Concrete Cutting | 3.1 m/s2 (K=0.2 m/s2) | ||
| Front Handle Vibration, ahv eq Pipe Cutting | 5.62 m/s2 (K=0.2 m/s2) | ||
| Rear Handle Vibration, ahv eq Pipe Cutting | 5.28 m/s2 (K=0.2 m/s2) | ||
| Water Supply (Min) | 20 psi (1.4 bar) | ||
| Water Flow Req (Min) | 2 gpm (8 lpm) | ||
| General | |||
|---|---|---|---|
| Unit of Measure | Each | ||
This item can be shipped
